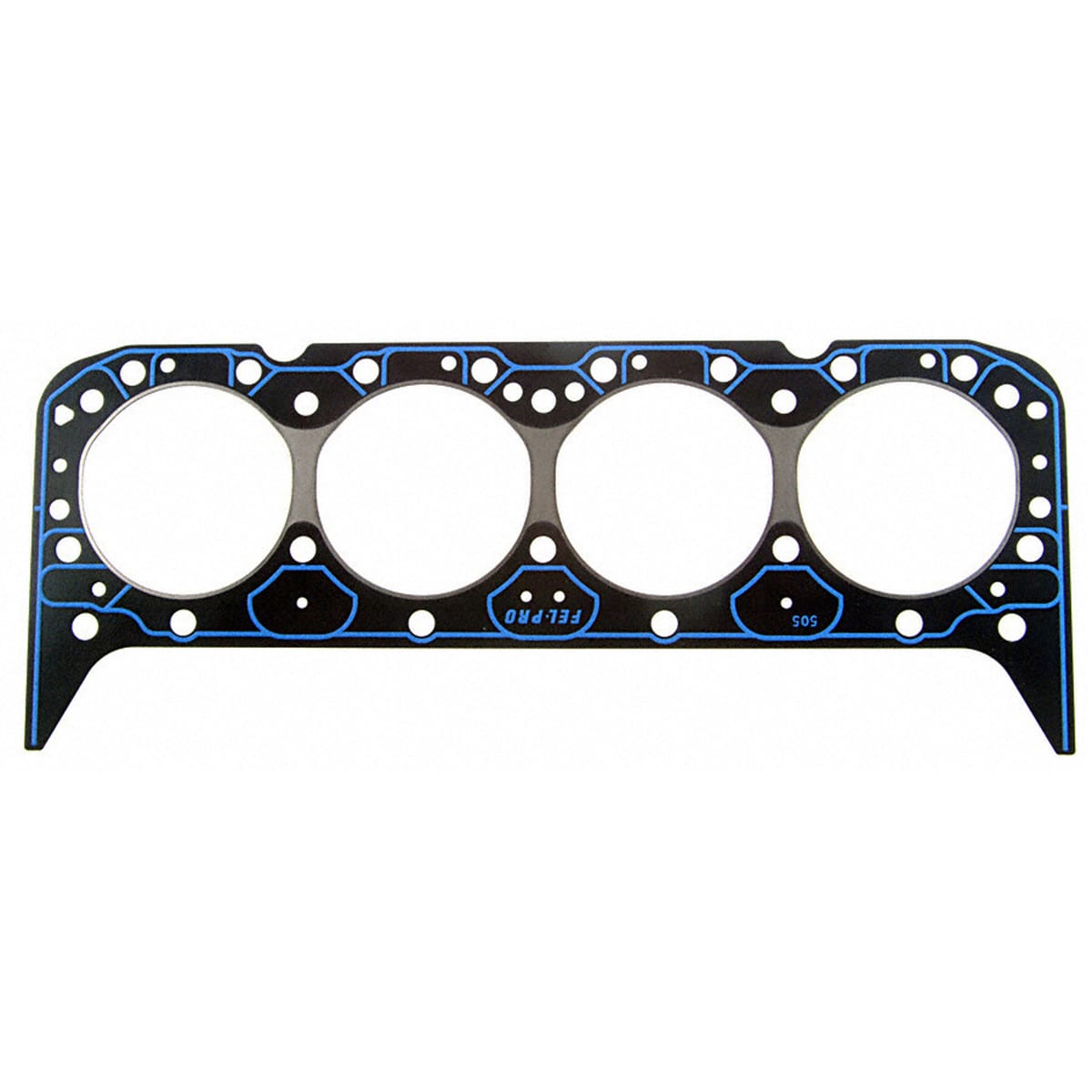

505SD - SFL_505SD_P04_TOP.jpg

Click image to view full size

505SDFel-Pro

Fel-Pro 505SD Cylinder Head Gasket – GMC C1500, Chevrolet G10

Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. DESIGNED FOR THE TOUGHEST CONDITIONS -- Engineered for hardworking vehicles that operate in severe conditions DISENADO PARA LAS CONDICIONES MAS DIFICILES ? Disenado para vehiculos trabajadores que operan en condiciones severas. CONCU POUR LES CONDITIONS LES PLUS DIFFICILES ? Concu pour les vehicules qui travaillent dur et qui fonctionnent dans des conditions severes STRONG AND DURABLE -- Severe duty steel core gaskets designed slightly thicker to accommodate for machined surfaces FUERTE Y DURADERO ? Juntas de nucleo de acero para uso severo disenadas ligeramente mas gruesas para adaptarse a superficies maquinadas. SOLIDE ET DURABLE ? Joints d?etancheite en acier de service solides concus legerement plus epais pour s?adapter aux surfaces usinees PREMIUM MATERIALS -- High-grade stainless armor enhances strength and corrosion resistance while proprietary coatings enhance sealing and anti-stick properties MATERIALES PREMIUM ? La armadura de acero inoxidable de alto grado mejora la fuerza y resistencia a la corrosion al mismo tiempo que los recubrimientos patentados mejoran el sellado y las propiedades antiadherentes MATERIAUX PREMIUM ? Les armures inoxydables de haute qualite renforcent la resistance a la corrosion, tandis que les revetements exclusifs ameliorent les proprietes d?etancheite et d?antiadhesif SUPERIOR SEAL -- Precise embossed Printoseal sealing beads at all vital areas to eliminate leak paths SELLO SUPERIOR ? Adhesivo de sellado Printoseal con estampado preciso en todas las areas vitales para eliminar las rutas de fuga JOINT SUPERIEUR ? Joncs d?etancheite sur bague aerosol Printoseal en relief precis dans toutes les zones vitales pour eliminer les voies de fuite DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces DISENADO PARA SUPERFICIES DE SELLADO IMPERFECTAS ? Disenado y fabricado especificamente para el entorno de reparacion para ayudar a sellar superficies de sellado imperfectas. CONCU POUR DES SURFACES D?ETANCHEITE IMPARFAITES ? Concu et fabrique specifiquement pour l?environnement de reparation pour aider a sceller les surfaces d?etancheite imparfaite

Price $43.00 · Back order

Shop this gasket by vehicle

These catalog pages list Fel-Pro parts for vehicles this gasket fits.

Other Fel-Pro gaskets for this vehicle

Other Fel-Pro part numbers from the same catalog listing.

Product Information

Brand
Fel-Pro
Part type
Engine Cylinder Head Gasket
Category
Engine
Subcategory
Gaskets and Sealing Systems
Qty needed
2
Weight
0.5 lbs
Length
22.5 in
Width
9.5 in
Height
0.1 in

Specifications

10
PermaTorque Severe Duty
10
PermaTorque Severe Duty
19
0.042
19
0.042
3390
Premium
3390
Premium
4098
3.900
4098
3.900
9022
No
9022
No
Head Gasket Bore
3.9
Head Gasket Bore
3.9
Head Gasket Manufactured Thickness
.0415" - .0485"
Head Gasket Manufactured Thickness
.0415" - .0485"
Prop 65 Label (Yes/No)
No
Prop 65 Label (Yes/No)
No

Compatible Vehicles

95 make/model groups from ACES 5.0 applications

Avanti

II1987–1991, 1981–1985

Buick

Century1977–1981
Commercial Chassis1991
LeSabre1978
Regal1982–1987, 1977–1980
Roadmaster1991
Skylark1977–1979

Cadillac

Brougham1991–1992

Checker

Marathon1977–1981

Chevrolet

Bel Air1981
Blazer1987
C101977–1986
C10 Suburban1981–1986, 1977–1979
C15001988–1999
C201981–1986, 1977–1978
C20 Suburban1981–1986, 1977–1979
C25001988–1999
C301978
Camaro1976–1992
Caprice1977–1993
Commercial Chassis1991–1992
Corvette1980
El Camino1976–1987
Express 15001996–2002
Express 25001996–2002
G101977–1995
G201980–1995
G301985, 1982, 1978–1979
Impala1977–1985
K101981–1986, 1977–1978
K10 Suburban1986, 1983, 1981, 1977–1979
K15001988–1999
K201985, 1977–1978
K20 Suburban1985–1986, 1977–1978
K25001988–1998
K5 Blazer1977–1986
Malibu1978–1983
Monte Carlo1976–1988
Monza1975–1979
Nova1975–1979
P101979
R101987
R10 Suburban1987
R201987
V101987

Excalibur

Phaeton1980–1989

GMC

C151977–1978
C15 Suburban1977–1978
C15001988–1999, 1979–1986
C1500 Suburban1981–1986, 1979
C251977–1978
C25 Suburban1977–1978
C25001988–1999, 1980–1986
C2500 Suburban1982–1986
C351978
C35001986
Caballero1978–1987
G151977–1978
G15001979–1995
G25001981–1995
Jimmy1977–1987
K151977–1978
K15 Suburban1977–1978
K15001988–1999, 1981–1986
K1500 Suburban1982, 1979
K251977–1978
K25 Suburban1977–1978
K25001998, 1988–1995
R15001987
R1500 Suburban1987
R25001987
Savana 15001996–2002
Savana 25001996–2002
Sprint1976–1977
V15001987

Oldsmobile

Custom Cruiser1991–1992
Cutlass1985–1987, 1978–1980
Cutlass Calais1983–1984, 1978–1980
Cutlass Cruiser1982–1983, 1980
Cutlass Salon1978–1980
Cutlass Supreme1985–1987, 1983, 1978–1980
Omega1977–1979
Starfire1977–1979

Pontiac

Bonneville1983–1986
Catalina1980–1981
Firebird1977–1992
Grand Am1978–1980
Grand LeMans1976–1983
Grand Prix1983–1987, 1978–1980
Laurentian1977–1981
LeMans1976–1981
Parisienne1977–1986
Phoenix1977–1979
Sunbird1978–1979
Ventura1977

Interchange Part Numbers

611060800 · BDCK3514VC · FLHQ611060800 · BDCK3514VC · FLHQ
