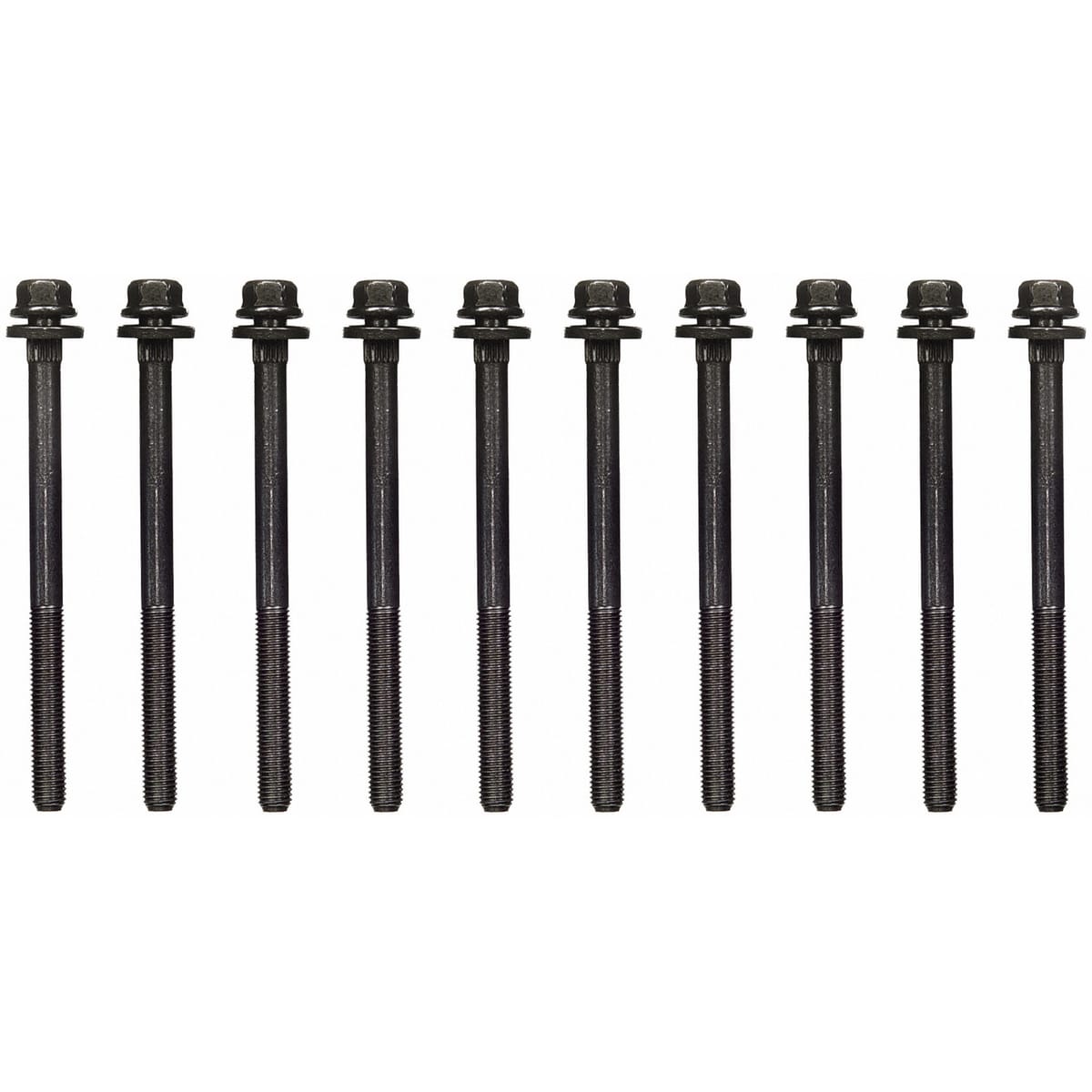

ES71028 - SFL_ES71028_P04_TOP.jpg

Click image to view full size

ES71028Fel-Pro

Fel-Pro ES71028 Cylinder Head Bolt Set – 1995–2007 Dodge Caravan / Stratus

Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance

Price $48.00 · Back order

Shop this gasket by vehicle

These catalog pages list Fel-Pro parts for vehicles this gasket fits.

Other Fel-Pro gaskets for this vehicle

Other Fel-Pro part numbers from the same catalog listing.

Product Information

Brand
Fel-Pro
Part type
Engine Cylinder Head Bolt Set
Category
Engine
Subcategory
Hardware, Fasteners and Fittings
Qty needed
1
Weight
0.2 lbs
Length
17.3 in
Width
12.3 in
Height
0.6 in

Specifications

1572
No
1572
No
3390
Premium
3390
Premium
4081
No
4081
No
9
Hex
9
Hex
Bolt Critical Length
142.0
Bolt Critical Length
142.0
Bolt Diameter
11.0
Bolt Diameter
11.0
Bolt Head Size
15
Bolt Head Size
15
Bolt Thread Length
62.0
Bolt Thread Length
62.0
Bolt Thread Pitch
1.50
Bolt Thread Pitch
1.50
Part Design or Feature or Use
Head bolts w/Washers; Replacement recommended
Part Design or Feature or Use
Head bolts w/Washers; Replacement recommended
Prop 65 Label (Yes/No)
No
Prop 65 Label (Yes/No)
No
Thread Diameter
11
Thread Diameter
11

Compatible Vehicles

14 make/model groups from ACES 5.0 applications

Chrysler

Cirrus1999–2000, 1995–1997
PT Cruiser2001–2010
Sebring2001–2006, 1996–1998
Voyager2000–2003

Dodge

Caravan1996–2007
Grand Caravan1996–1997
Neon2003–2005
Stratus1995–2006

Jeep

Liberty2002–2005
TJ2005–2006, 2003
Wrangler2003–2006

Plymouth

Breeze1996–2000
Grand Voyager1996–1997
Voyager1996–2000

Interchange Part Numbers

MM23513 · BCLR141006001 · BDCK6504033 · BWRVGS33343 · FLHQ27307 · FVBKMM23513 · BCLR141006001 · BDCK6504033 · BWRVGS33343 · FLHQ27307 · FVBK
