ES71193 - SFL_ES71193_P04_TOP.jpg

Click image to view full size

ES71193Fel-Pro

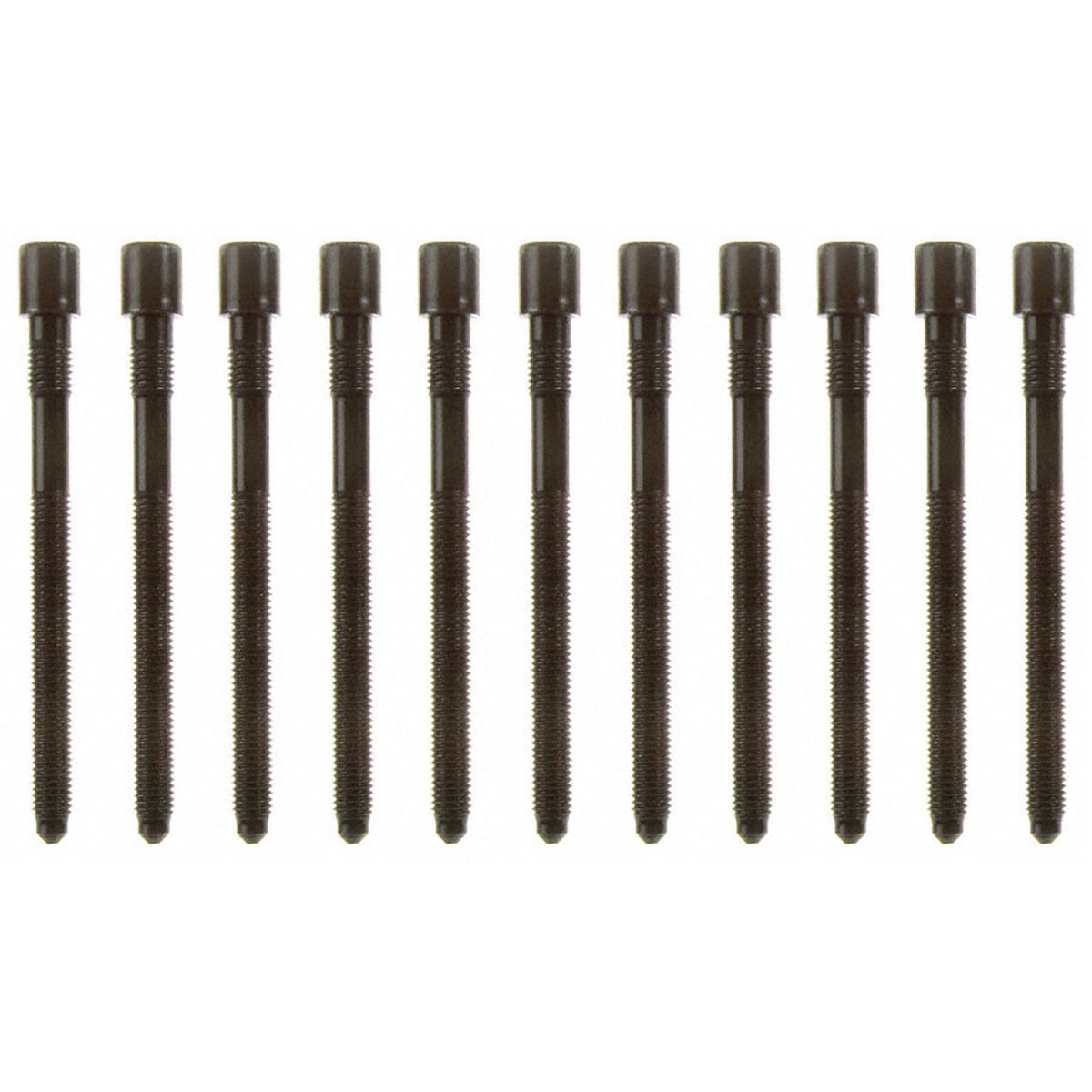

Fel-Pro ES71193 Cylinder Head Bolt Set – 2000–2006 Audi TT / TT Quattro

Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance

Price $113.00 · Back order

Shop this gasket by vehicle

These catalog pages list Fel-Pro parts for vehicles this gasket fits.

Other Fel-Pro gaskets for this vehicle

Other Fel-Pro part numbers from the same catalog listing.

Product Information

Brand
Fel-Pro
Part type
Engine Cylinder Head Bolt Set
Category
Engine
Subcategory
Hardware, Fasteners and Fittings
Qty needed
1
Weight
0.2 lbs
Length
12.8 in
Width
8.8 in
Height
0.5 in

Specifications

1572
No
1572
No
3390
Premium
3390
Premium
4081
No
4081
No
Bolt Critical Length
120.0
Bolt Critical Length
120.0
Bolt Diameter
10.0
Bolt Diameter
10.0
Bolt Head Size
Special 6 point
Bolt Head Size
Special 6 point
Bolt Thread Length
80.0
Bolt Thread Length
80.0
Bolt Thread Pitch
1.50
Bolt Thread Pitch
1.50
Head Drive Type
Socket Cap
Head Drive Type
Socket Cap
Part Design or Feature or Use
Replacement recommended
Part Design or Feature or Use
Replacement recommended
Prop 65 Label (Yes/No)
No
Prop 65 Label (Yes/No)
No
Thread Diameter
10
Thread Diameter
10

Compatible Vehicles

8 make/model groups from ACES 5.0 applications

Audi

A42001–2006
A4 Quattro2001–2005
TT2000–2006
TT Quattro2000–2006

Volkswagen

Beetle1999–2005
Golf2000–2006
Jetta2000–2005
Passat2000–2005

Interchange Part Numbers

MM23601 · BCLR141009001 · BDCK143212401 · BDCK06A103385A · CPCDMM23601 · BCLR141009001 · BDCK143212401 · BDCK06A103385A · CPCD
