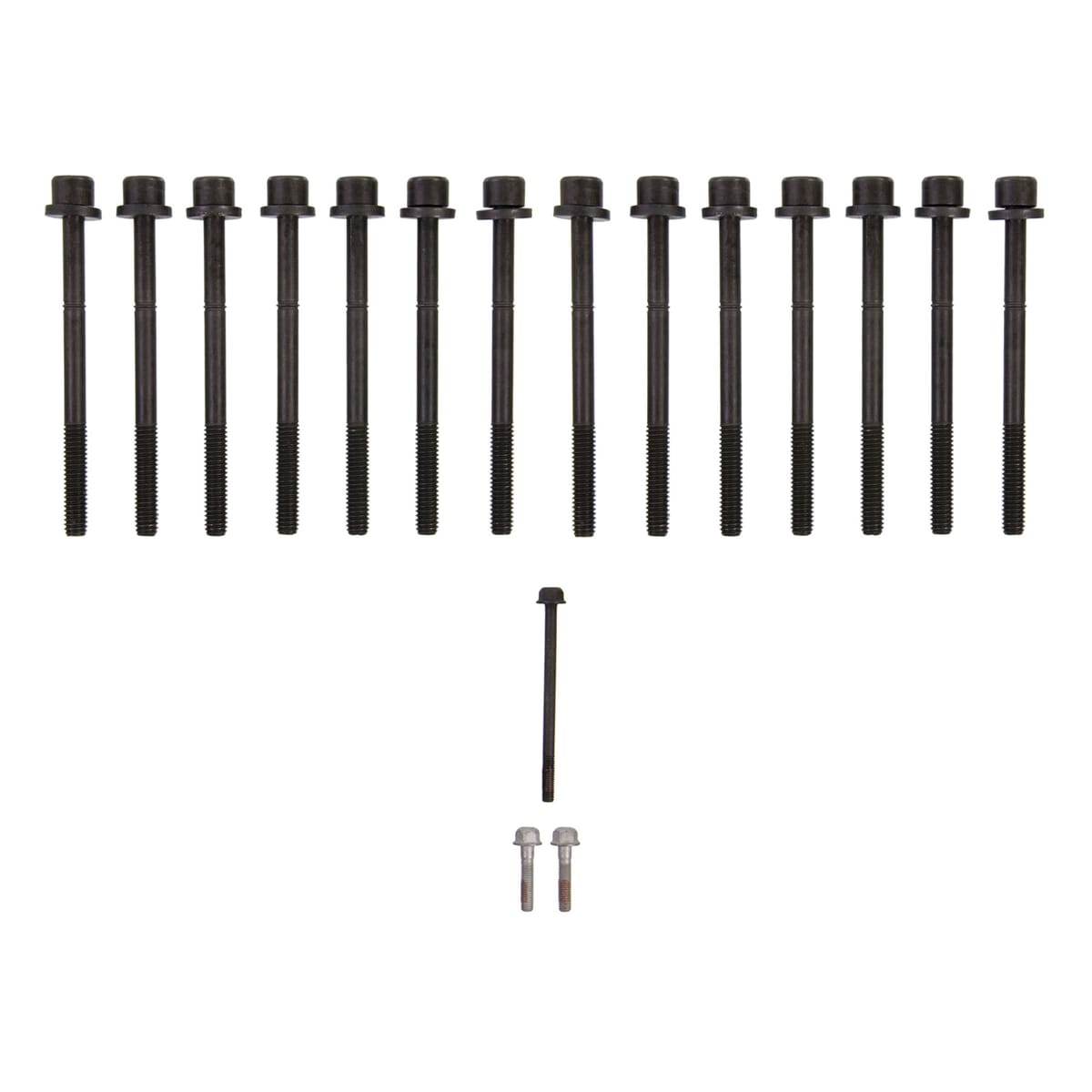

Fel-Pro ES71334 Cylinder Head Bolt Set – Chevrolet Colorado, GMC Canyon
Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance
Price $118.00 · Back order
Shop this gasket by vehicle
These catalog pages list Fel-Pro parts for vehicles this gasket fits.
- 2012 Chevrolet Colorado Fel-Pro gaskets
- 2009 Chevrolet Trailblazer Fel-Pro gaskets
- 2006 Chevrolet Trailblazer EXT Fel-Pro gaskets
- 2007 Buick Rainier Fel-Pro gaskets
- 2012 GMC Canyon Fel-Pro gaskets
- 2009 GMC Envoy Fel-Pro gaskets
- 2006 GMC Envoy XL Fel-Pro gaskets
- 2005 GMC Envoy XUV Fel-Pro gaskets
- 2010 Hummer H3 Fel-Pro gaskets
- 2010 Hummer H3T Fel-Pro gaskets
- 2008 Isuzu Ascender Fel-Pro gaskets
- 2006 Isuzu i-280 Fel-Pro gaskets
- 2008 Isuzu i-290 Fel-Pro gaskets
- 2006 Isuzu i-350 Fel-Pro gaskets
- 2008 Isuzu i-370 Fel-Pro gaskets
- 2004 Oldsmobile Bravada Fel-Pro gaskets
Other Fel-Pro gaskets for this vehicle
Other Fel-Pro part numbers from the same catalog listing.
- Fel-Pro HS26190PT-4 Cylinder Head Gasket Set
- Fel-Pro 26190PT Cylinder Head Gasket
- Fel-Pro MS96440-1 Intake Manifold Gasket Set
- Fel-Pro ES75120 Exhaust Manifold Hardware Kit
- Fel-Pro MS92467 Exhaust Manifold Gasket Set
- Fel-Pro ES72233 Valve Cover Grommet Set
- Fel-Pro VS50504R Valve Cover Gasket Set
- Fel-Pro SS71039 Valve Stem Oil Seal Set
Product Information
- Brand
- Fel-Pro
- Part type
- Engine Cylinder Head Bolt Set
- Category
- Engine
- Subcategory
- Hardware, Fasteners and Fittings
- Qty needed
- 1
- Weight
- 2 lbs
- Length
- 7.6 in
- Width
- 4 in
- Height
- 2.4 in
Specifications
- 1572
- No
- 1572
- No
- 3390
- Premium
- 3390
- Premium
- 4081
- No
- 4081
- No
- 9
- Allen Key
- 9
- Allen Key
- Bolt Critical Length
- 5.75" (Bolt 1) 3.5" (Bolt 2) 1.175" (Bolt 3)
- Bolt Critical Length
- 5.75" (Bolt 1) 3.5" (Bolt 2) 1.175" (Bolt 3)
- Bolt Diameter
- 0.38" (Bolt 1) 0.2075" (Bolt 2) 0.23" (Bolt 3)
- Bolt Diameter
- 0.38" (Bolt 1) 0.2075" (Bolt 2) 0.23" (Bolt 3)
- Bolt Head Size
- 0.73" (Bolt 1) 0.39" (Bolt 2) 0.39" (Bolt 3)
- Bolt Head Size
- 0.73" (Bolt 1) 0.39" (Bolt 2) 0.39" (Bolt 3)
- Bolt Thread Length
- 1.925" (Bolt 1) 0.835" (Bolt 2) 0.879" (Bolt 3)
- Bolt Thread Length
- 1.925" (Bolt 1) 0.835" (Bolt 2) 0.879" (Bolt 3)
- Bolt Thread Pitch
- 12MM*1.75 6MM*1 6MM*1
- Bolt Thread Pitch
- 12MM*1.75 6MM*1 6MM*1
- Prop 65 Label (Yes/No)
- No
- Prop 65 Label (Yes/No)
- No
- Thread Diameter
- 6
- Thread Diameter
- 6
Compatible Vehicles
17 make/model groups from ACES 5.0 applications
