ES72160 - SFL_ES72160_P04_TOP.jpg

Click image to view full size

ES72160Fel-Pro

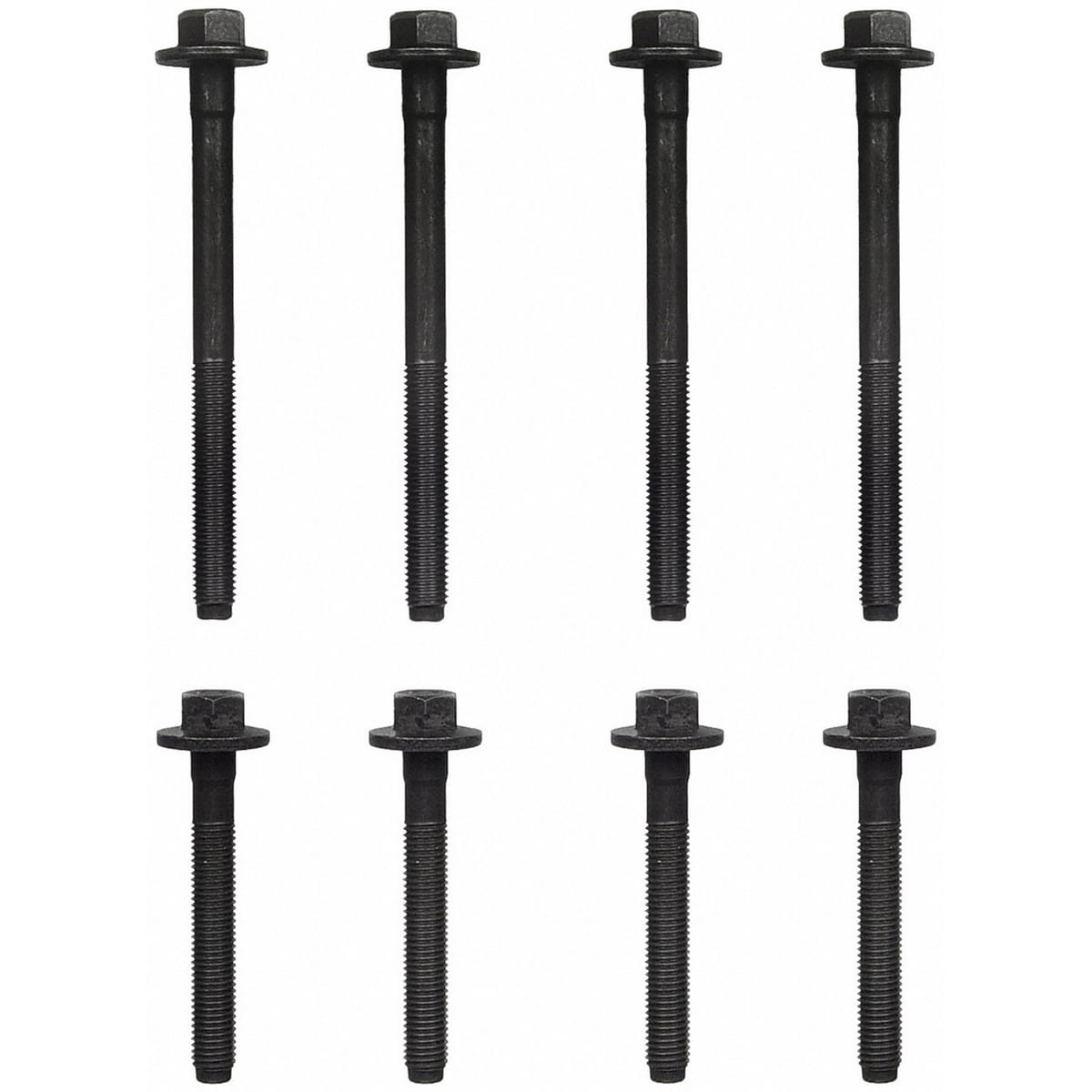

Fel-Pro ES72160 Cylinder Head Bolt Set – 1997–2008 Ford F-150 / Mustang

Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance

Price $35.00 · In stock

Shop this gasket by vehicle

These catalog pages list Fel-Pro parts for vehicles this gasket fits.

Other Fel-Pro gaskets for this vehicle

Other Fel-Pro part numbers from the same catalog listing.

Product Information

Brand
Fel-Pro
Part type
Engine Cylinder Head Bolt Set
Category
Engine
Subcategory
Hardware, Fasteners and Fittings
Qty needed
2
Weight
0.3 lbs
Length
12.5 in
Width
8.8 in
Height
0.9 in

Specifications

1572
No
1572
No
3390
Premium
3390
Premium
4081
No
4081
No
9
Hex
9
Hex
Bolt Critical Length
131mm (Bolt 1); 80mm (Bolt 2)
Bolt Critical Length
131mm (Bolt 1); 80mm (Bolt 2)
Bolt Diameter
11mm (Bolt 1); 11mm (Bolt 2)
Bolt Diameter
11mm (Bolt 1); 11mm (Bolt 2)
Bolt Head Size
15mm (Bolt 1); 15mm (Bolt 2)
Bolt Head Size
15mm (Bolt 1); 15mm (Bolt 2)
Bolt Thread Length
61mm (Bolt 1); 62mm (Bolt 2)
Bolt Thread Length
61mm (Bolt 1); 62mm (Bolt 2)
Bolt Thread Pitch
1.50 (Bolt 1); 1.50 (Bolt 2)
Bolt Thread Pitch
1.50 (Bolt 1); 1.50 (Bolt 2)
Part Design or Feature or Use
Replacement required
Part Design or Feature or Use
Replacement required
Prop 65 Label (Yes/No)
No
Prop 65 Label (Yes/No)
No
Thread Diameter
11
Thread Diameter
11

Compatible Vehicles

14 make/model groups from ACES 5.0 applications

Ford

E-1502003
E-150 Club Wagon2003
E-150 Econoline1997–2002
E-150 Econoline Club Wagon1997–2002
E-2502003
E-250 Econoline1997–2002
F-1502005–2008, 1997–2003
F-150 Heritage2004
Freestar2004–2007
Mustang1997–2004
Thunderbird1997
Windstar1998–2003

Mercury

Cougar1997
Monterey2004–2007

Interchange Part Numbers

141005401 · BDCKGS33317 · FLHQ27313 · FVBK852396 · JHYQ141005401 · BDCKGS33317 · FLHQ27313 · FVBK852396 · JHYQ
