ES72171Fel-Pro

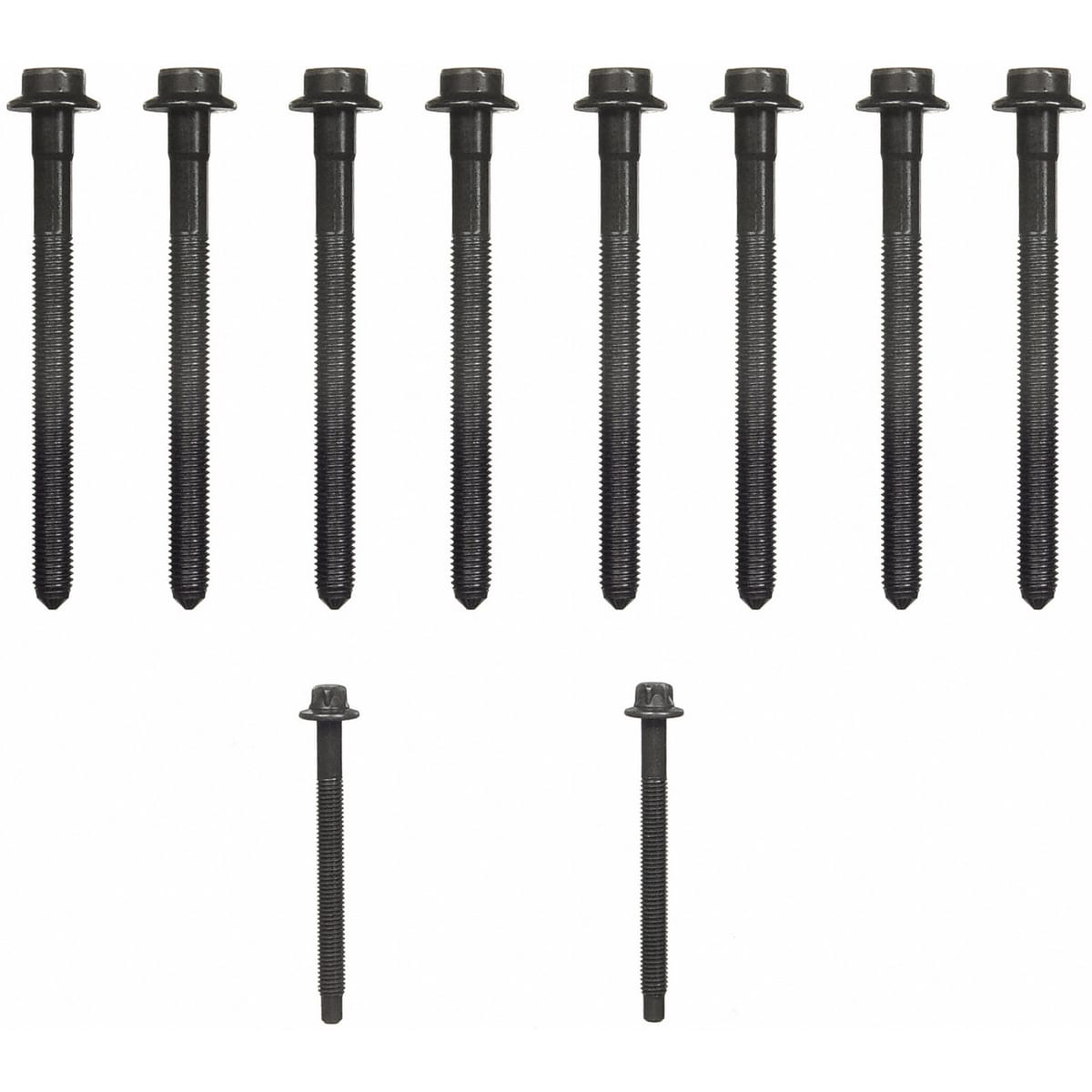

Fel-Pro ES72171 Cylinder Head Bolt Set – Ford Explorer, Mercury Mountaineer

Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance

Price $55.00 · Back order

Shop this gasket by vehicle

These catalog pages list Fel-Pro parts for vehicles this gasket fits.

Other Fel-Pro gaskets for this vehicle

Other Fel-Pro part numbers from the same catalog listing.

Product Information

Brand
Fel-Pro
Part type
Engine Cylinder Head Bolt Set
Category
Engine
Subcategory
Hardware, Fasteners and Fittings
Qty needed
2
Weight
0.2 lbs
Length
12.8 in
Width
8.8 in
Height
0.5 in

Specifications

1572
No
1572
No
3390
Premium
3390
Premium
4081
No
4081
No
9
Hex
9
Hex
Bolt Critical Length
139mm (Bolt 1); 85mm (Bolt 2)
Bolt Critical Length
139mm (Bolt 1); 85mm (Bolt 2)
Bolt Diameter
12mm (Bolt 1); 8mm (Bolt 2)
Bolt Diameter
12mm (Bolt 1); 8mm (Bolt 2)
Bolt Head Size
Torx 55 (Bolt 1); Torx 55 (Bolt 2)
Bolt Head Size
Torx 55 (Bolt 1); Torx 55 (Bolt 2)
Bolt Thread Length
106mm (Bolt 1); 69mm (Bolt 2)
Bolt Thread Length
106mm (Bolt 1); 69mm (Bolt 2)
Bolt Thread Pitch
1.75 (Bolt 1); 1.25 (Bolt 2)
Bolt Thread Pitch
1.75 (Bolt 1); 1.25 (Bolt 2)
Part Design or Feature or Use
Replacement required
Part Design or Feature or Use
Replacement required
Prop 65 Label (Yes/No)
No
Prop 65 Label (Yes/No)
No
Thread Diameter
12
Thread Diameter
12

Compatible Vehicles

8 make/model groups from ACES 5.0 applications

Ford

Explorer1997–2010
Explorer Sport2001–2003
Explorer Sport Trac2007–2010, 2001–2005
Mustang2005–2010
Ranger2001–2011

Land Rover

LR32005–2009

Mazda

B40002001–2010

Mercury

Mountaineer1998–2010

Interchange Part Numbers

141008101 · BDCKGS33401 · FLHQ27312 · FVBK852478 · JHYQ141008101 · BDCKGS33401 · FLHQ27312 · FVBK852478 · JHYQ
