ES72173Fel-Pro

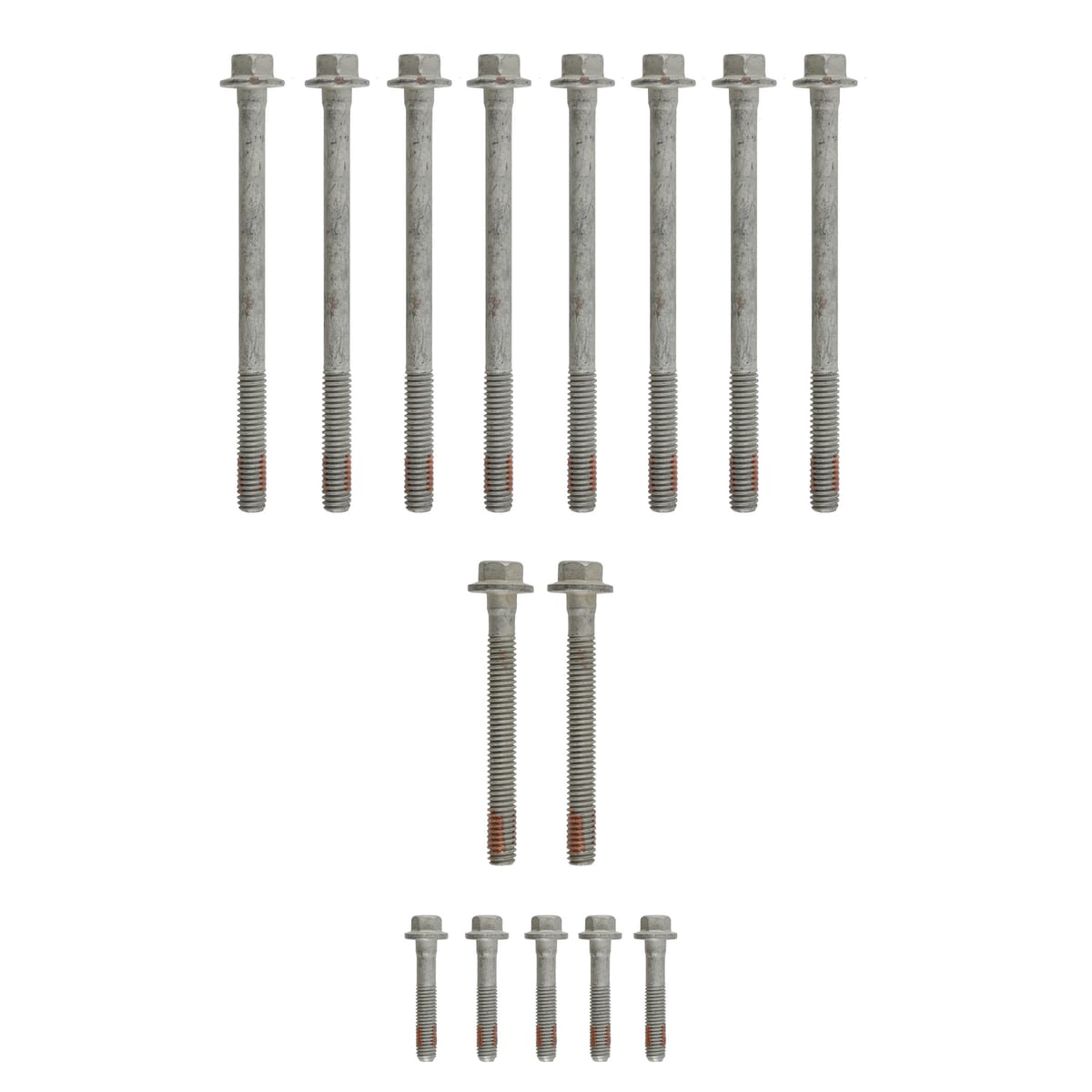

Fel-Pro ES72173 Cylinder Head Bolt Set – 1997–2004 Chevrolet Corvette / Silverado 1500

Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance

Price $34.00 · In stock

Shop this gasket by vehicle

These catalog pages list Fel-Pro parts for vehicles this gasket fits.

Other Fel-Pro gaskets for this vehicle

Other Fel-Pro part numbers from the same catalog listing.

Product Information

Brand
Fel-Pro
Part type
Engine Cylinder Head Bolt Set
Category
Engine
Subcategory
Hardware, Fasteners and Fittings
Qty needed
2
Weight
0.1 lbs
Length
6 in
Width
4 in
Height
0.4 in

Specifications

1572
No
1572
No
3390
Premium
3390
Premium
4081
No
4081
No
9
Hex
9
Hex
Bolt Critical Length
155mm (Bolt 1); 100mm (Bolt 2); 45mm (Bolt 3)
Bolt Critical Length
155mm (Bolt 1); 100mm (Bolt 2); 45mm (Bolt 3)
Bolt Diameter
11mm (Bolt 1); 11mm (Bolt 2); 8mm (Bolt 3)
Bolt Diameter
11mm (Bolt 1); 11mm (Bolt 2); 8mm (Bolt 3)
Bolt Head Size
15mm (Bolt 1); 15mm (Bolt 2); 10mm (Bolt 3)
Bolt Head Size
15mm (Bolt 1); 15mm (Bolt 2); 10mm (Bolt 3)
Bolt Thread Length
55mm (Bolt 1); 85mm (Bolt 2); 32mm (Bolt 3)
Bolt Thread Length
55mm (Bolt 1); 85mm (Bolt 2); 32mm (Bolt 3)
Bolt Thread Pitch
2.00 (Bolt 1); 2.00 (Bolt 2); 1.25 (Bolt 3)
Bolt Thread Pitch
2.00 (Bolt 1); 2.00 (Bolt 2); 1.25 (Bolt 3)
Part Design or Feature or Use
Replacement recommended
Part Design or Feature or Use
Replacement recommended
Prop 65 Label (Yes/No)
No
Prop 65 Label (Yes/No)
No
Thread Diameter
11
Thread Diameter
11

Compatible Vehicles

43 make/model groups from ACES 5.0 applications

Avanti

II2001–2004

Buick

Rainier2004

Cadillac

CTS2004
Escalade2002–2004
Escalade ESV2003–2004
Escalade EXT2002–2004

Chevrolet

Avalanche 15002002–2004
Camaro1998–2002
Corvette1997–2004
Express 15002003–2004
Express 25002003–2004
Express 35002003–2004
Silverado 15001999–2004
Silverado 1500 HD2001–2003
Silverado 25001999–2004
Silverado 2500 HD2001–2004
Silverado 35002001–2004
SSR2003–2004
Suburban 15002000–2004
Suburban 25002000–2004
Tahoe2000–2004
Trailblazer EXT2003–2004

GMC

Envoy XL2003–2004
Envoy XUV2004
Savana 15002003–2004
Savana 25002003–2004
Savana 35002003–2004
Sierra 15001999–2004
Sierra 1500 HD2001–2003
Sierra 25001999–2004
Sierra 2500 HD2001–2004
Sierra 35002001–2004
Yukon2000–2004
Yukon XL 15002000–2004
Yukon XL 25002000–2004

Hummer

H22003–2004

Isuzu

Ascender2003–2004

Pontiac

Firebird1998–2002
GTO2004

Workhorse

FasTrack FT10612004
FasTrack FT14612004
FasTrack FT16012004
FasTrack FT18012004

Interchange Part Numbers

141007101 · BDCKGS33380 · CCJNGS33380 · FLHQ27317 · FVBK852480 · JHYQ141007101 · BDCKGS33380 · CCJNGS33380 · FLHQ27317 · FVBK852480 · JHYQ
