ES72267Fel-Pro

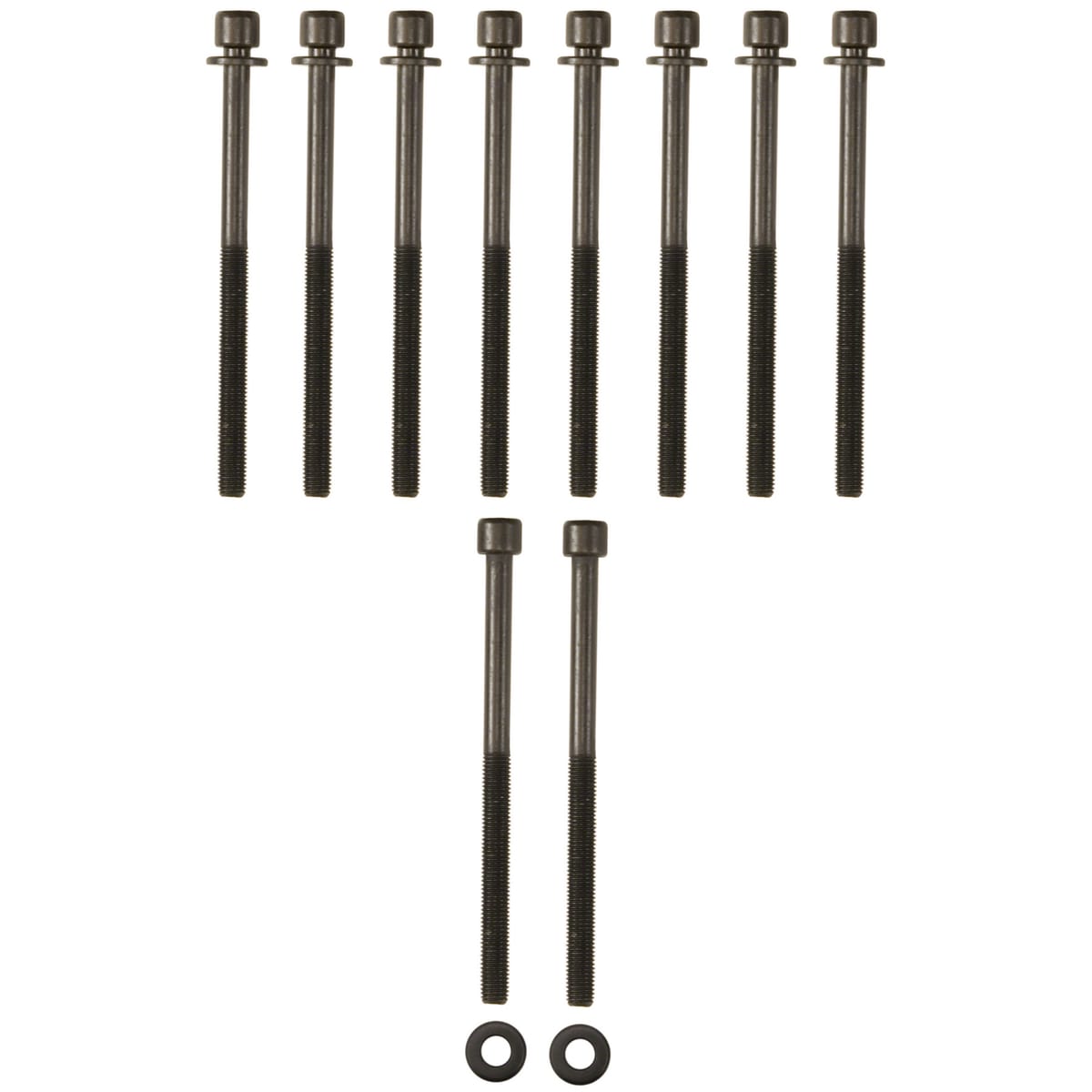

Fel-Pro ES72267 Cylinder Head Bolt Set – Jeep Compass, Dodge Journey

Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance

Price $79.00 · Back order

Shop this gasket by vehicle

These catalog pages list Fel-Pro parts for vehicles this gasket fits.

Other Fel-Pro gaskets for this vehicle

Other Fel-Pro part numbers from the same catalog listing.

Product Information

Brand
Fel-Pro
Part type
Engine Cylinder Head Bolt Set
Category
Engine
Subcategory
Hardware, Fasteners and Fittings
Qty needed
1
Weight
0.4 lbs
Length
23.6 in
Width
7 in
Height
0.5 in

Specifications

1572
No
1572
No
3390
Premium
3390
Premium
4081
No
4081
No
Bolt Critical Length
165mm (Bolt 1); 165mm (Bolt 2)
Bolt Critical Length
165mm (Bolt 1); 165mm (Bolt 2)
Bolt Diameter
11mm (Bolt 1); 11mm (Bolt 2)
Bolt Diameter
11mm (Bolt 1); 11mm (Bolt 2)
Bolt Head Size
Torx 55 (Bolt 1); Torx 55 (Bolt 2)
Bolt Head Size
Torx 55 (Bolt 1); Torx 55 (Bolt 2)
Bolt Thread Length
91mm (Bolt 1); 90mm (Bolt 2)
Bolt Thread Length
91mm (Bolt 1); 90mm (Bolt 2)
Bolt Thread Pitch
1.50 (Bolt 1); 1.50 (Bolt 2)
Bolt Thread Pitch
1.50 (Bolt 1); 1.50 (Bolt 2)
Head Drive Type
Socket Cap
Head Drive Type
Socket Cap
Part Design or Feature or Use
Head bolts w/Washers; Replacement recommended
Part Design or Feature or Use
Head bolts w/Washers; Replacement recommended
Prop 65 Label (Yes/No)
No
Prop 65 Label (Yes/No)
No
Thread Diameter
11
Thread Diameter
11

Compatible Vehicles

12 make/model groups from ACES 5.0 applications

Chrysler

2002011–2017
Sebring2007–2010

Dodge

Avenger2008–2014
Caliber2007–2012
Dart2013–2016
Journey2009–2020

Fiat

500X2016–2018

Jeep

Cherokee2014–2020
Compass2007–2020
Patriot2007–2017
Renegade2015–2020

Ram

ProMaster City2015–2020

Interchange Part Numbers

141012701 · BDCK141038301 · BDCKGS33547 · FLHQ141012701 · BDCK141038301 · BDCKGS33547 · FLHQ
