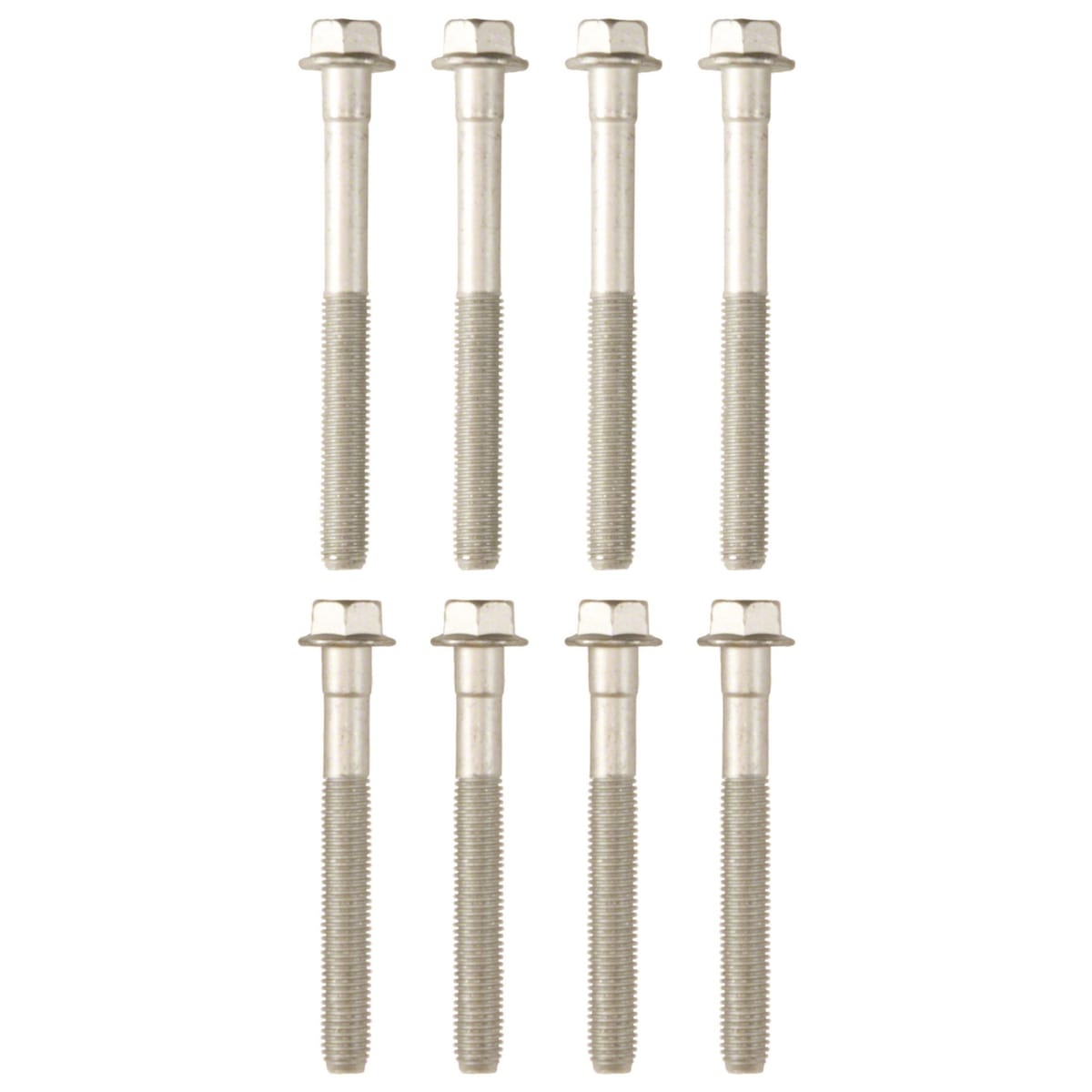

Fel-Pro ES72303 Cylinder Head Bolt Set – Chevrolet Malibu, Pontiac G6
Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance
Price $19.00 · Back order
Shop this gasket by vehicle
These catalog pages list Fel-Pro parts for vehicles this gasket fits.
Other Fel-Pro gaskets for this vehicle
Other Fel-Pro part numbers from the same catalog listing.
- Fel-Pro HS26223PT1 Cylinder Head Gasket Set
- Fel-Pro 26223PT Cylinder Head Gasket
- Fel-Pro ES72226 Intake Manifold Bolt Set
- Fel-Pro MIK98015T Intake Manifold Gasket Set
- Fel-Pro MS96376 Exhaust Manifold Gasket Set
- Fel-Pro ES71044 Valve Cover Grommet Set
- Fel-Pro VS50442R Valve Cover Gasket Set
- Fel-Pro SS70829 Valve Stem Oil Seal Set
Product Information
- Brand
- Fel-Pro
- Part type
- Engine Cylinder Head Bolt Set
- Category
- Engine
- Subcategory
- Hardware, Fasteners and Fittings
- Qty needed
- 2
- Weight
- 0.4 lbs
- Length
- 23.6 in
- Width
- 7 in
- Height
- 0.4 in
Specifications
- 1572
- No
- 1572
- No
- 3390
- Premium
- 3390
- Premium
- 4081
- No
- 4081
- No
- 9
- Hex
- 9
- Hex
- Bolt Critical Length
- 108mm (Bolt 1); 91mm (Bolt 2)
- Bolt Critical Length
- 108mm (Bolt 1); 91mm (Bolt 2)
- Bolt Diameter
- 11mm (Bolt 1); 11mm (Bolt 2)
- Bolt Diameter
- 11mm (Bolt 1); 11mm (Bolt 2)
- Bolt Head Size
- 15mm (Bolt 1); 15mm (Bolt 2)
- Bolt Head Size
- 15mm (Bolt 1); 15mm (Bolt 2)
- Bolt Thread Length
- 60mm (Bolt 1); 65mm (Bolt 2)
- Bolt Thread Length
- 60mm (Bolt 1); 65mm (Bolt 2)
- Bolt Thread Pitch
- 1.50 (Bolt 1); 1.50 (Bolt 2)
- Bolt Thread Pitch
- 1.50 (Bolt 1); 1.50 (Bolt 2)
- Part Design or Feature or Use
- Replacement recommended
- Part Design or Feature or Use
- Replacement recommended
- Prop 65 Label (Yes/No)
- No
- Prop 65 Label (Yes/No)
- No
- Thread Diameter
- 11
- Thread Diameter
- 11
Compatible Vehicles
2 make/model groups from ACES 5.0 applications
