ES72733 - SFL_ES72733_P04_TOP.jpg

Click image to view full size

ES72733Fel-Pro

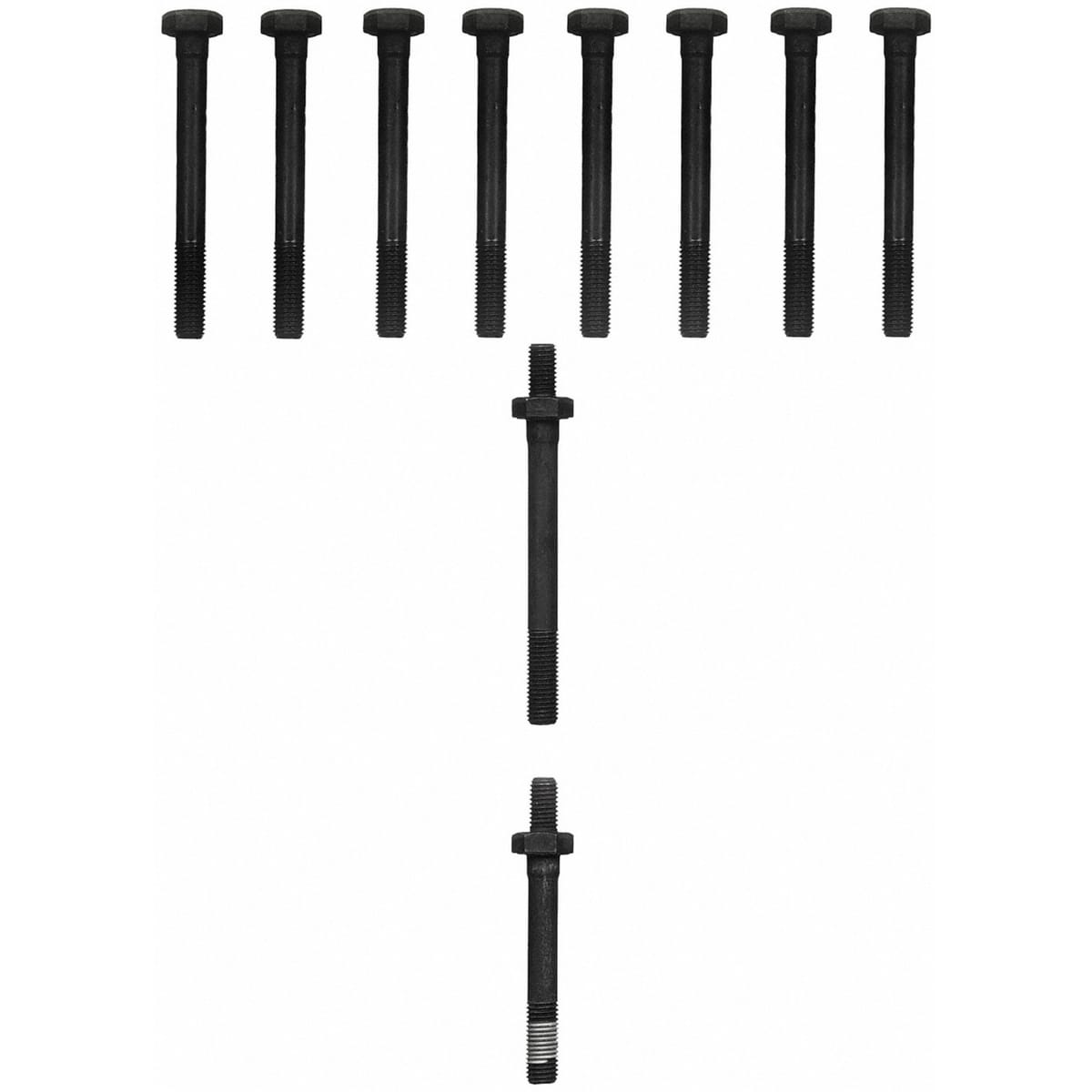

Fel-Pro ES72733 Cylinder Head Bolt Set – Chevrolet S10, Buick Century

Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance

Price $27.00 · Back order

Shop this gasket by vehicle

These catalog pages list Fel-Pro parts for vehicles this gasket fits.

Other Fel-Pro gaskets for this vehicle

Other Fel-Pro part numbers from the same catalog listing.

Product Information

Brand
Fel-Pro
Part type
Engine Cylinder Head Bolt Set
Category
Engine
Subcategory
Hardware, Fasteners and Fittings
Qty needed
1
Weight
0.2 lbs
Length
18.3 in
Width
7.5 in
Height
0.4 in

Specifications

1572
No
1572
No
3390
Premium
3390
Premium
4081
No
4081
No
9
Hex
9
Hex
Bolt Critical Length
99mm (Bolt 1); 99mm (Bolt 2); 74mm (Bolt 3)
Bolt Critical Length
99mm (Bolt 1); 99mm (Bolt 2); 74mm (Bolt 3)
Bolt Diameter
11mm (Bolt 1); 11mm (Bolt 2); 11mm (Bolt 3)
Bolt Diameter
11mm (Bolt 1); 11mm (Bolt 2); 11mm (Bolt 3)
Bolt Head Size
18mm (Bolt 1); 18mm (Bolt 2); 18mm (Bolt 3)
Bolt Head Size
18mm (Bolt 1); 18mm (Bolt 2); 18mm (Bolt 3)
Bolt Thread Length
32mm (Bolt 1); 32mm (Bolt 2); 26mm (Bolt 3)
Bolt Thread Length
32mm (Bolt 1); 32mm (Bolt 2); 26mm (Bolt 3)
Bolt Thread Pitch
1.50 (Bolt 1); 1.50 (Bolt 2); 1.50 (Bolt 3)
Bolt Thread Pitch
1.50 (Bolt 1); 1.50 (Bolt 2); 1.50 (Bolt 3)
Part Design or Feature or Use
Replacement recommended
Part Design or Feature or Use
Replacement recommended
Prop 65 Label (Yes/No)
No
Prop 65 Label (Yes/No)
No
Thread Diameter
11
Thread Diameter
11

Compatible Vehicles

19 make/model groups from ACES 5.0 applications

Buick

Century1985–1992
Skylark1985

Chevrolet

Astro1985–1990
Camaro1985–1986
Celebrity1985–1990
Citation II1985
LLV1987–1993
Lumina1990–1992
S101985–1993
S10 Blazer1985–1988

GMC

S151985–1990
S15 Jimmy1985–1988
Safari1985–1990
Sonoma1991–1993

Oldsmobile

Cutlass Ciera1985–1992
Cutlass Cruiser1987–1992

Pontiac

60001985–1991
Fiero1985–1988
Firebird1985–1986

Interchange Part Numbers

821042 · BBKTMM22752 · BCLR141003701 · BDCK65562 · CDDF66562 · CDDFS151 · DTJQS151U · DTJQGS33190 · FLHQ27264 · FVBK613559 · JHYQ821042 · BBKTMM22752 · BCLR141003701 · BDCK65562 · CDDF66562 · CDDFS151 · DTJQS151U · DTJQGS33190 · FLHQ27264 · FVBK613559 · JHYQ
