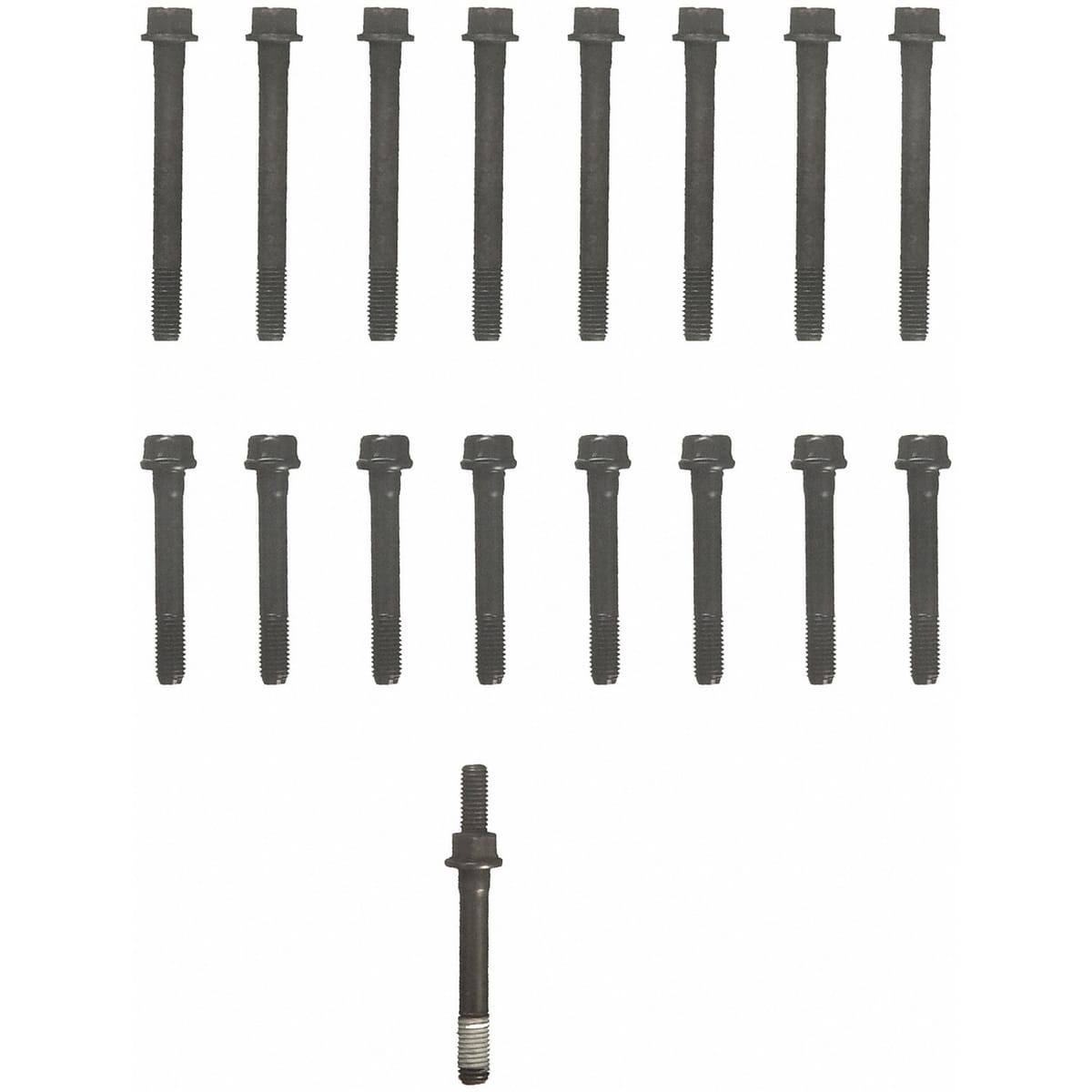

Fel-Pro ES72857 Cylinder Head Bolt Set – Chevrolet Camaro, Pontiac Firebird
Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance
Price $41.00 · Back order
Shop this gasket by vehicle
These catalog pages list Fel-Pro parts for vehicles this gasket fits.
- 1995 Chevrolet Camaro Fel-Pro gaskets
- 1986 Chevrolet Cavalier Fel-Pro gaskets
- 1986 Chevrolet Celebrity Fel-Pro gaskets
- 1983 Chevrolet Citation Fel-Pro gaskets
- 1985 Chevrolet Citation II Fel-Pro gaskets
- 1993 Chevrolet S10 Fel-Pro gaskets
- 1989 Chevrolet S10 Blazer Fel-Pro gaskets
- 1986 Buick Century Fel-Pro gaskets
- 1985 Buick Skylark Fel-Pro gaskets
- 1986 Cadillac Cimarron Fel-Pro gaskets
- 1990 GMC S15 Fel-Pro gaskets
- 1989 GMC S15 Jimmy Fel-Pro gaskets
- 1993 GMC Sonoma Fel-Pro gaskets
- 1991 Isuzu Trooper Fel-Pro gaskets
- 1986 Jeep Cherokee Fel-Pro gaskets
- 1986 Jeep Comanche Fel-Pro gaskets
Other Fel-Pro gaskets for this vehicle
Other Fel-Pro part numbers from the same catalog listing.
- Fel-Pro HS9105PT Cylinder Head Gasket Set
- Fel-Pro 9105PT Cylinder Head Gasket
- Fel-Pro MS93020 Intake Manifold Gasket Set
- Fel-Pro MS90864 Exhaust Manifold Gasket Set
- Fel-Pro ES72833 Valve Cover Grommet Set
- Fel-Pro VS50080R Valve Cover Gasket Set
- Fel-Pro VS50293R Valve Cover Gasket
- Fel-Pro SS72144 Valve Stem Oil Seal Set
Product Information
- Brand
- Fel-Pro
- Part type
- Engine Cylinder Head Bolt Set
- Category
- Engine
- Subcategory
- Hardware, Fasteners and Fittings
- Qty needed
- 1
- Weight
- 0.2 lbs
- Length
- 12.8 in
- Width
- 8.8 in
- Height
- 0.5 in
Specifications
- 1572
- No
- 1572
- No
- 3390
- Premium
- 3390
- Premium
- 4081
- No
- 4081
- No
- 9
- Hex
- 9
- Hex
- Bolt Critical Length
- 93mm (Bolt 1); 68mm (Bolt 2); 67mm (Bolt 3)
- Bolt Critical Length
- 93mm (Bolt 1); 68mm (Bolt 2); 67mm (Bolt 3)
- Bolt Diameter
- 11mm (Bolt 1); 11mm (Bolt 2); 11mm (Bolt 3)
- Bolt Diameter
- 11mm (Bolt 1); 11mm (Bolt 2); 11mm (Bolt 3)
- Bolt Head Size
- 15mm (Bolt 1); 15mm (Bolt 2); 15mm (Bolt 3)
- Bolt Head Size
- 15mm (Bolt 1); 15mm (Bolt 2); 15mm (Bolt 3)
- Bolt Thread Length
- 23mm (Bolt 1); 23mm (Bolt 2); 23mm (Bolt 3)
- Bolt Thread Length
- 23mm (Bolt 1); 23mm (Bolt 2); 23mm (Bolt 3)
- Bolt Thread Pitch
- 1.50 (Bolt 1); 1.50 (Bolt 2); 1.50 (Bolt 3)
- Bolt Thread Pitch
- 1.50 (Bolt 1); 1.50 (Bolt 2); 1.50 (Bolt 3)
- Part Design or Feature or Use
- Replacement recommended
- Part Design or Feature or Use
- Replacement recommended
- Prop 65 Label (Yes/No)
- No
- Prop 65 Label (Yes/No)
- No
- Thread Diameter
- 11
- Thread Diameter
- 11
Compatible Vehicles
24 make/model groups from ACES 5.0 applications
