ES74017Fel-Pro

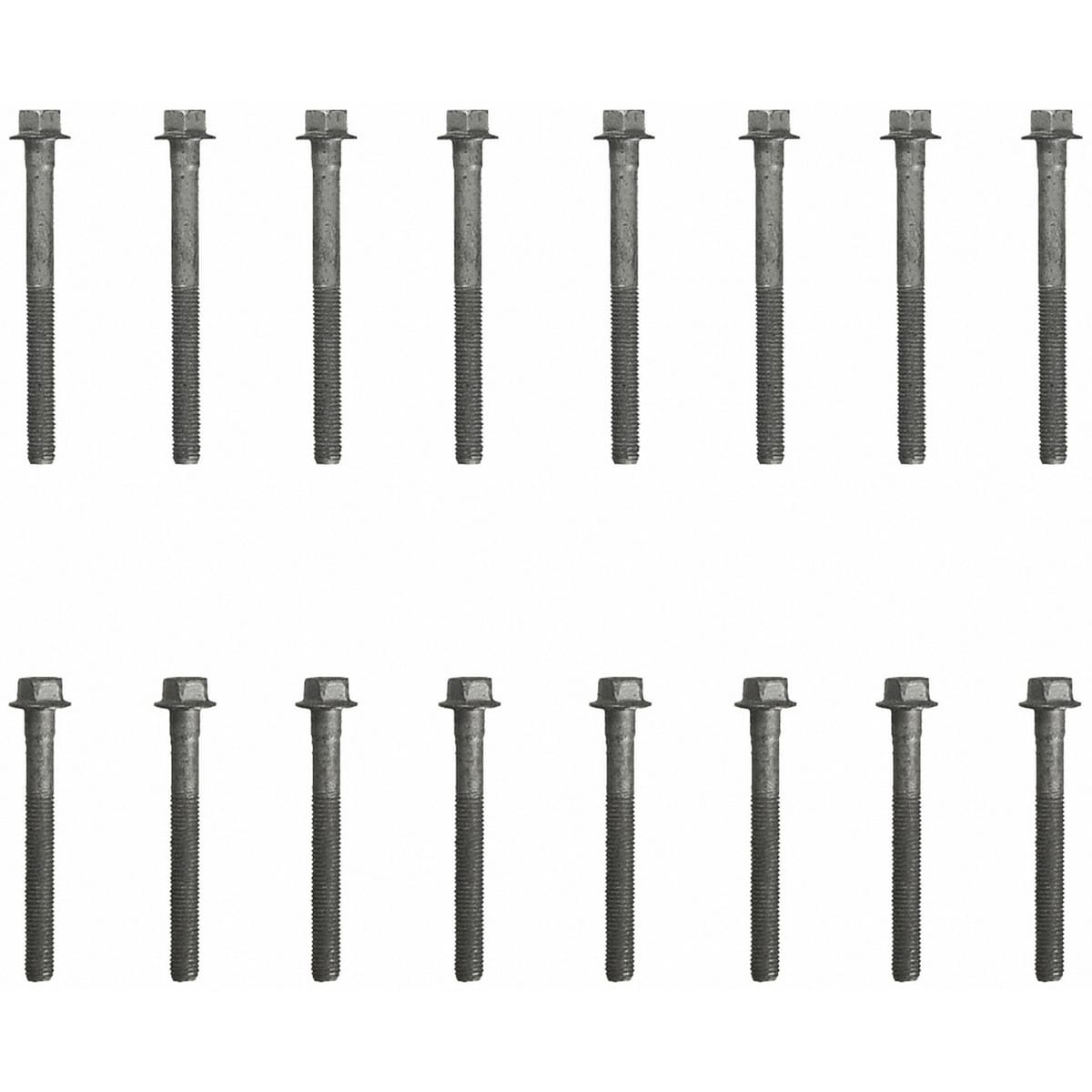

Fel-Pro ES74017 Cylinder Head Bolt Set – Pontiac Grand Am, Chevrolet Cavalier

Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance

Price $43.00 · Back order

Shop this gasket by vehicle

These catalog pages list Fel-Pro parts for vehicles this gasket fits.

Other Fel-Pro gaskets for this vehicle

Other Fel-Pro part numbers from the same catalog listing.

Product Information

Brand
Fel-Pro
Part type
Engine Cylinder Head Bolt Set
Category
Engine
Subcategory
Hardware, Fasteners and Fittings
Qty needed
1
Weight
0.2 lbs
Length
23.6 in
Width
7 in
Height
0.3 in

Specifications

1572
No
1572
No
3390
Premium
3390
Premium
4081
No
4081
No
9
Hex
9
Hex
Bolt Critical Length
108mm (Bolt 1); 91mm (Bolt 2)
Bolt Critical Length
108mm (Bolt 1); 91mm (Bolt 2)
Bolt Diameter
11mm (Bolt 1); 11mm (Bolt 2)
Bolt Diameter
11mm (Bolt 1); 11mm (Bolt 2)
Bolt Head Size
15mm (Bolt 1); 15mm (Bolt 2)
Bolt Head Size
15mm (Bolt 1); 15mm (Bolt 2)
Bolt Thread Length
60mm (Bolt 1); 65mm (Bolt 2)
Bolt Thread Length
60mm (Bolt 1); 65mm (Bolt 2)
Bolt Thread Pitch
1.50 (Bolt 1); 1.50 (Bolt 2)
Bolt Thread Pitch
1.50 (Bolt 1); 1.50 (Bolt 2)
Part Design or Feature or Use
Replacement recommended
Part Design or Feature or Use
Replacement recommended
Prop 65 Label (Yes/No)
No
Prop 65 Label (Yes/No)
No
Thread Diameter
11
Thread Diameter
11

Compatible Vehicles

15 make/model groups from ACES 5.0 applications

Buick

Skylark1996–1998

Cadillac

Cimarron1987–1988

Chevrolet

Beretta1996, 1987–1989
Cavalier1987–1994
Corsica1996, 1987–1989
Malibu1997–2003

Oldsmobile

Achieva1996–1998
Alero1999–2004
Cutlass1999
Cutlass Ciera1996
Cutlass Supreme1996–1997
Firenza1987

Pontiac

Grand Am1996–2005
Sunbird1991–1994
Tempest1987–1989

Interchange Part Numbers

141010401 · BDCK10227594 · CLJBGS33224 · FLHQGS33225 · FLHQGS33377 · FLHQ27277 · FVBK662145 · JHYQ141010401 · BDCK10227594 · CLJBGS33224 · FLHQGS33225 · FLHQGS33377 · FLHQ27277 · FVBK662145 · JHYQ
