ES74022Fel-Pro

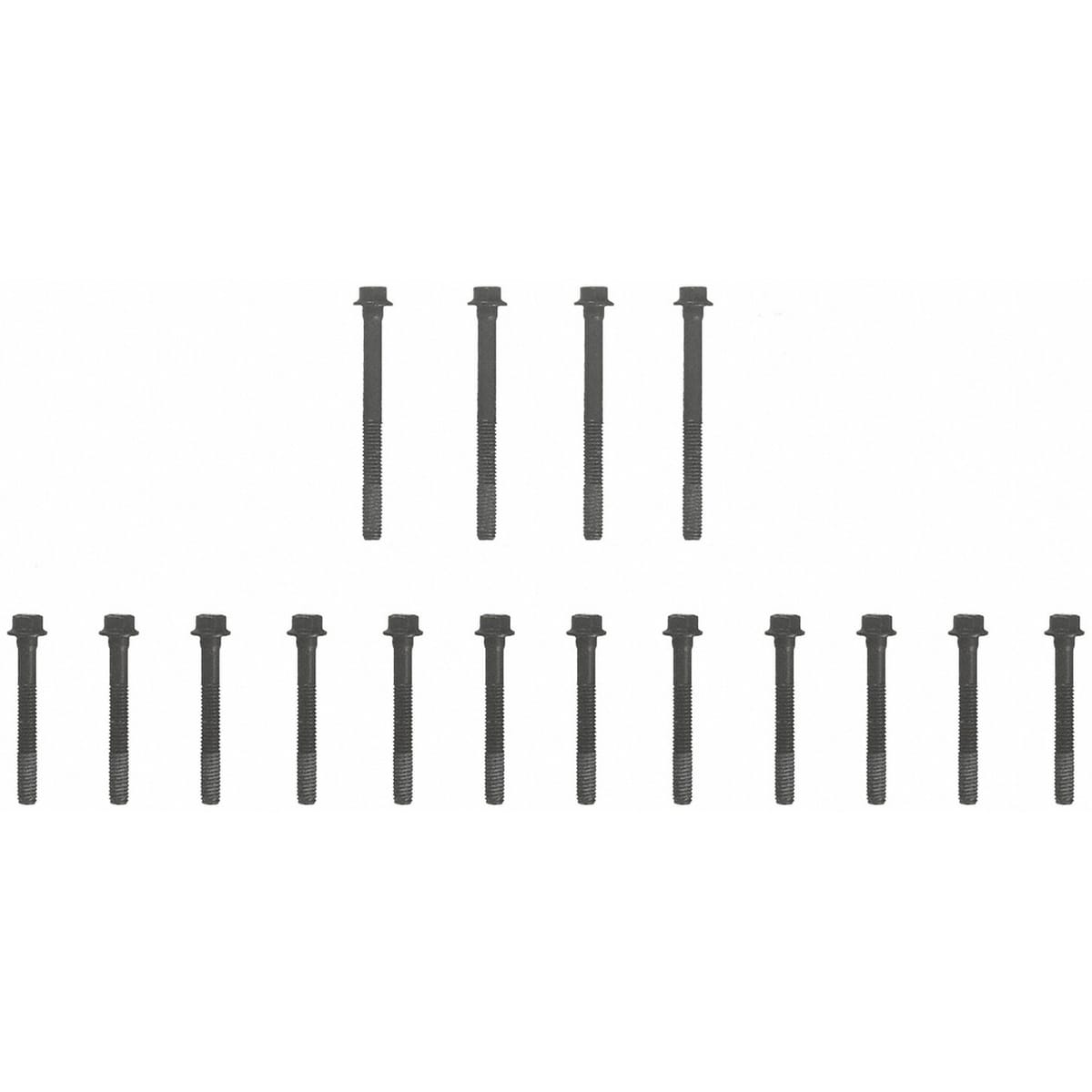

Fel-Pro ES74022 Cylinder Head Bolt Set – 1986–1988 Buick Century / LeSabre

Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance

Price $35.00 · Back order

Shop this gasket by vehicle

These catalog pages list Fel-Pro parts for vehicles this gasket fits.

Other Fel-Pro gaskets for this vehicle

Other Fel-Pro part numbers from the same catalog listing.

Product Information

Brand
Fel-Pro
Part type
Engine Cylinder Head Bolt Set
Category
Engine
Subcategory
Hardware, Fasteners and Fittings
Qty needed
1
Weight
0.4 lbs
Length
16.5 in
Width
8.8 in
Height
1.3 in

Specifications

1572
No
1572
No
3390
Premium
3390
Premium
4081
No
4081
No
9
Hex
9
Hex
Bolt Critical Length
4.438" (Bolt 1); 3.240" (Bolt 2)
Bolt Critical Length
4.438" (Bolt 1); 3.240" (Bolt 2)
Bolt Diameter
.438" (Bolt 1); .438" (Bolt 2)
Bolt Diameter
.438" (Bolt 1); .438" (Bolt 2)
Bolt Head Size
.563" (Bolt 1); .563" (Bolt 2)
Bolt Head Size
.563" (Bolt 1); .563" (Bolt 2)
Bolt Thread Length
2.275" (Bolt 1); 2.275" (Bolt 2)
Bolt Thread Length
2.275" (Bolt 1); 2.275" (Bolt 2)
Bolt Thread Pitch
14 (Bolt 1); 14 (Bolt 2)
Bolt Thread Pitch
14 (Bolt 1); 14 (Bolt 2)
Part Design or Feature or Use
Replacement required
Part Design or Feature or Use
Replacement required
Prop 65 Label (Yes/No)
No
Prop 65 Label (Yes/No)
No
Thread Diameter
0.438
Thread Diameter
0.438

Compatible Vehicles

16 make/model groups from ACES 5.0 applications

Buick

Century1986–1988
Electra1986–1987
LeSabre1986–1988
Regal1986–1987
Riviera1986–1987

Chevrolet

Monte Carlo1986–1987

Oldsmobile

981986–1987
Cutlass Ciera1986–1988
Cutlass Cruiser1987–1988
Cutlass Salon1986–1987
Cutlass Supreme1986–1987
Delta 881986–1988
Toronado1986–1987

Pontiac

Bonneville1986–1988
Firebird1989
Grand Prix1986–1987

Interchange Part Numbers

821051 · BBKT141013101 · BDCKGS33237 · FLHQ27275 · FVBK662150 · JHYQ821051 · BBKT141013101 · BDCKGS33237 · FLHQ27275 · FVBK662150 · JHYQ
