ES74034Fel-Pro

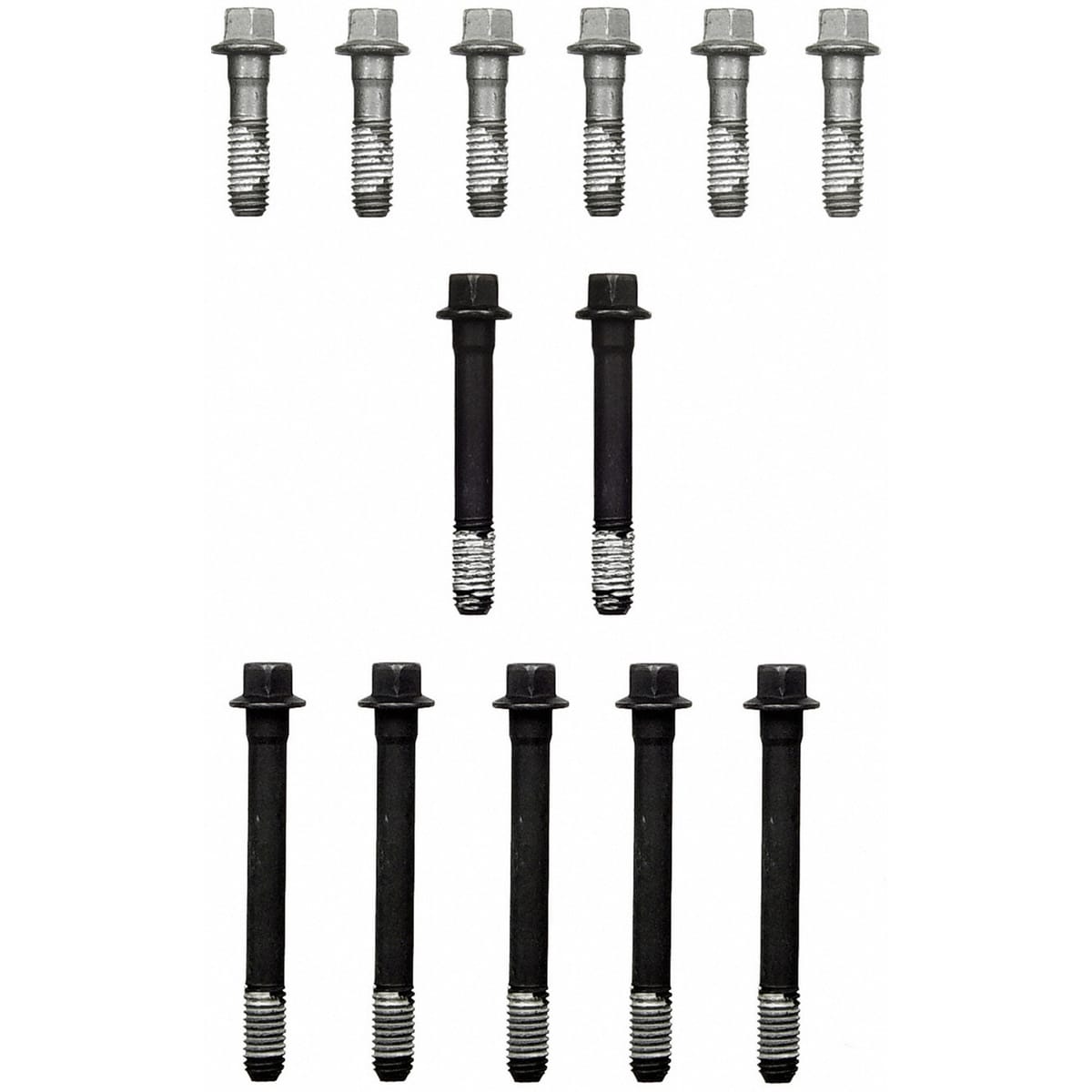

Fel-Pro ES74034 Cylinder Head Bolt Set – Chevrolet Astro, GMC Safari

Las juntas Fel-Pro ofrecen un sellado de vehiculos al 100 % con materiales especificos a la aplicacion para brindarle soluciones de sellado con el desempeno y durabilidad que confian los profesionales. Meets or exceeds all original equipment specifications Cumple o excede todas las especificaciones de equipo original. Respecte ou depasse toutes les specifications d?equipement d?origine Application specific design to ensure a perfect fit Diseno especifico segun la aplicacion para garantizar un ajuste perfecto Conception propre aux applications pour garantir un ajustement parfait Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts Evite riesgos asociados con el reuso de pernos de cabezas TTY (torsion hasta el limite de elasticidad) Evitez le risque associe a la reutilisation des boulons a tete T-T-Y (couple a produire) Validated for fit, form and function Validada en cuanto a forma, tamano y funcion Valide pour l?ajustement, la forme et la fonction Unsurpassed quality you can trust Calidad insuperable en que puede confiar Qualite inegalee a laquelle vous pouvez faire confiance

Price $24.00 · In stock

Shop this gasket by vehicle

These catalog pages list Fel-Pro parts for vehicles this gasket fits.

Other Fel-Pro gaskets for this vehicle

Other Fel-Pro part numbers from the same catalog listing.

Product Information

Brand
Fel-Pro
Part type
Engine Cylinder Head Bolt Set
Category
Engine
Subcategory
Hardware, Fasteners and Fittings
Qty needed
2
Weight
0.3 lbs
Length
23.6 in
Width
6 in
Height
0.2 in

Specifications

1572
No
1572
No
3390
Premium
3390
Premium
4081
No
4081
No
9
Hex
9
Hex
Bolt Critical Length
3.688" (Bolt 1); 2.938" (Bolt 2); 1.625" (Bolt 3)
Bolt Critical Length
3.688" (Bolt 1); 2.938" (Bolt 2); 1.625" (Bolt 3)
Bolt Diameter
.438" (Bolt 1); .438" (Bolt 2); .438" (Bolt 3)
Bolt Diameter
.438" (Bolt 1); .438" (Bolt 2); .438" (Bolt 3)
Bolt Head Size
.500" (Bolt 1); .500" (Bolt 2); .500" (Bolt 3)
Bolt Head Size
.500" (Bolt 1); .500" (Bolt 2); .500" (Bolt 3)
Bolt Thread Length
1.060" (Bolt 1); 1.000" (Bolt 2); 1.000" (Bolt 3)
Bolt Thread Length
1.060" (Bolt 1); 1.000" (Bolt 2); 1.000" (Bolt 3)
Bolt Thread Pitch
14 (Bolt 1); 14 (Bolt 2); 14 (Bolt 3)
Bolt Thread Pitch
14 (Bolt 1); 14 (Bolt 2); 14 (Bolt 3)
Part Design or Feature or Use
Replacement recommended
Part Design or Feature or Use
Replacement recommended
Prop 65 Label (Yes/No)
No
Prop 65 Label (Yes/No)
No
Thread Diameter
0.438
Thread Diameter
0.438

Compatible Vehicles

56 make/model groups from ACES 5.0 applications

Chevrolet

Astro1985–2005
Blazer1995–2005
C101985–1986
C15001988–1998
C201985–1986
C25001988–1995
Caprice1992–1993, 1985–1990
Commercial Chassis1992
El Camino1985–1987
Express 15001996–2014
Express 25001996–2006
G101985–1995
G201985–1995
G301985–1996
Impala1985
K101985–1986
K15001988–1998
K201985
K25001988–1995
Monte Carlo1985–1988
P301990–1999
R101987
R201987
S101988–2004
S10 Blazer1988–1994
Silverado 15001999–2013
Silverado 1500 Classic2007
V101987

GMC

C15001988–1998, 1985–1986
C25001988–1995, 1985–1986
Caballero1985–1987
G15001985–1995
G25001985–1995
G35001985–1996
Jimmy1992–2005
K15001988–1998, 1985–1986
K25001988–1995, 1985
P35001990–1999
R15001987
R25001987
S151988–1990
S15 Jimmy1988–1991
Safari1985–2005
Savana 15001996–2014
Savana 25001996–2006
Savana 35002000–2002, 1997–1998
Sierra 15001999–2013
Sierra 1500 Classic2007
Sonoma1991–2004
V15001987

Isuzu

Hombre1997–2000

Oldsmobile

Bravada1996–2001, 1991–1994

Pontiac

Bonneville1986
Grand Prix1986–1987
Parisienne1985–1986

Workhorse

FasTrack FT9312002–2003

Interchange Part Numbers

141004901 · BDCK2201018 · BGBG10168525 · CLJB10168526 · CLJB10168527 · CLJBGS33286 · FLHQ27296 · FVBK830466 · JHYQ141004901 · BDCK2201018 · BGBG10168525 · CLJB10168526 · CLJB10168527 · CLJBGS33286 · FLHQ27296 · FVBK830466 · JHYQ
